Seperate precooling Double system Ice Cream Machine from China manufacturer - Ningbo Sicen Refrigeration Equipment Co.,Ltd.

Seperate precooling Double system Ice Cream Machine

Price:	1000.0~5000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Floor model 248A

Production Capacity: 200 sets per month

Delivery Date: 10-20 days

Voltage: 220V/240V-50HZ

Capacity: 48L/Hr

Net weight: 220KG

Means of Transport: Ocean,Air

Packing: Carton with pallet

Brand Name: SPACE

Power: 3.5KW

Material: stainless steel

Gross weight: 240KG

a.Air pump
b.Dual system
c.2x 1.7 Liters Freezing Cylinder
d.2x 12.5 Liters Hopper
e.Air cooling
f.Automatic control

Multiple flavors Double system soft Ice Cream Machine 248A ,Capacity 48L/Hr

Specifications

Voltage : 220V/240V-50HZ

Power : 3.5KW

Net weight:220kg Gross weight: 240kg

Machine size:550x650x1340mm Packing size:650x780x1520 mm

Quantity for20"container:27sets Quantity for 40"container:54sets

* Floor Model
* Double Systems

* Air pump

* Twin flavours + one mixed

* 2x 1.7 Liters Cylinder

* 2x 12.5 Liters Hopper

* 48 Liters/H

* Stainless Steel Panels

* Double LED touch button control panels

Capacity

48 Liters/H ,390 cones/hour (100ml/cone)

(Capacity varies depending on condition of mix and environment)

Double systems

Two microprocessor controls, can separate control of each flavor.Both side can work separately.

Product Offering

Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Freezing Cylinder

Two, 2×1.7 liters

Mix Hopper

Two, 2×12.5 liters

Separate hopper refrigeration (Pre-cooling) maintains mix temperature below 5ºC

Refrigeration System

Main refrigeration:

Two compressors: 2×3800 BTU/hr. R404a

Separate hopper refrigeration (Pre-cooling.):

One compressor: 420 BTU/hr. R134a

(BTU may vary depending on compressor used.)

Beater Motor

Two, 2 HP

Air pump(Model number with letter A)

Grind mix with more air to more softer and smoother product, more overrun.

Hardness Indicator

Displays hardness status of the refrigerated product to ensure product quality.

Standby

During long no-use periods, the standby feature maintains safe product temperature in the mix hoppers and freezing cylinders.

Electronic Controls

The microprocessor controls automatically regulate refrigeration by monitoring product temperature and viscosity to maintain consistent quality.

Air Cooled

Required clearance: minimum 152mm (6") on both sides. Unit rear must be placed against a wall to prevent recirculation of hot air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Options:

1.Manufactured upon request, not available in stock

2.Ice cream cone&cup dispenser

3.Power Supply:220V/60HZ

4.Local specific plugs of power supply wire.

5.Cover of dispenser door

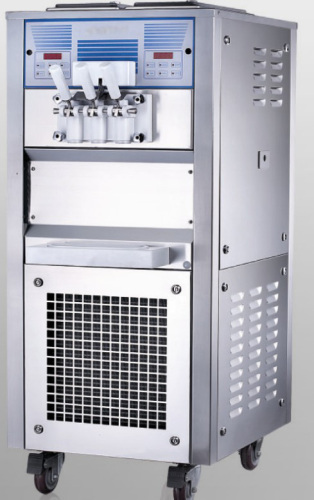

Picture of Multiple flavors Double system soft Ice Cream Machine 248A, Capacity 48L/Hr
