soft ice cream machine from China manufacturer - Ningbo Sicen Refrigeration Equipment Co.,Ltd.

Price:	1000.0~5000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6240A

Production Capacity: 200 sets per month

Delivery Date: 10-20days

Voltage: 210-230V/50HZ

Capacity: 40L/Hr

Net weight: 170KG

Means of Transport: Ocean,Air

Packing: Carton with pallet

Brand Name: SPACE

Power: 2.6KW

Material: stainless steel

Gross weight: 190KG

1.Mix-low light
2.LED automatic control
3.Agitator in the hopper
4.compressor:ASPERA or TAIKANG
5.air cooling
6.expansion valve:Danfoss

Pump in hopper 3 flavor soft ice cream machine

Electrical requirements

One dedicated electrical connection is required.

Make voltage steady when machine is ON.

Main motor

one,2.0HP

Refrigeration system

one compressor:5039 BTU/hr. R404a

separate hopper refrigeration(pre-cooling):one compressor:400BTU/hr.R134a

(BTU may vary depending on compressor used.)

Air cooled

Minimum clearance of 152 mm on both sides is to achieve optimum performance.

Refer to the local situationto regulate the parameters,on basic of the data label.Specificaitons ofthe improvements are subjuct to change without notice.

Specification

Voltage:210-230V/50Hz

Power:2.6KW

N.W.(KG):170kg

G.W.(KG):190kg

Dimension Net (mm):867*554*1065

Dimension Packing(mm):800*645*1250

Options

Local specific plugs of power supply wire

Cup dispenser

Power supply 220V/60Hz

Feature:

1.Table model

2.Air cooling

3.Twin flavour+one mix

4.Air pump freezer---Gear pumps ensure a high overrun ice cream

5. Stainless Steel Panels

6.LED automatic control

Product Offering

offer all popular soft serve variations from low or non-fat ice cream to custards,yogurt and sorbet.

Freezing cylinder

Two,1.8 Liter

Mix hopper

Two,12.5 Liter

separate hopper refrigeration(Pre-cooling)maintains mix below 4.4℃.

Microprocessor controls

microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light

The mix low light turns"ON" to alert operator to add mix,preventing cylinder over freezing.

Standby

Maintains product temperature in the mix hoppers and freezing cylinders below 4.4℃during long no-use periods.

Counter

Records number of dispenses per day and total number of dispenses.

Agitator in the hopper

Mixture has better liquidity, the temperature of the Mix to be more uniform.

Output

40 Liter/Hour(At 4℃liquid &24℃Ambient)

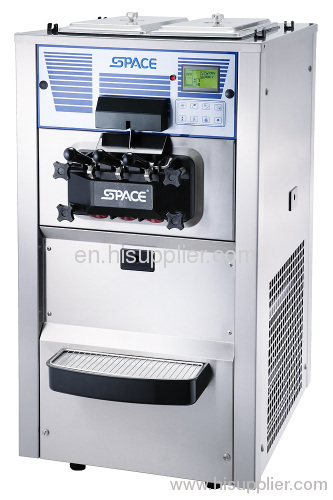

Picture of Pump in hopper 3 flavor soft ice cream machine
