commercial frozen yogurt machine air pump in hopper

Price:	1000.0~5000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 6378A

Production Capacity: 200 sets per month

Delivery Date: 10-20days

Voltage: 380-450/50Hz/60Hz

Capacity: 78L/Hr

Net weight: 260KG

Dimension Net (mm): 857*605*1550

Means of Transport: Ocean,Air

Packing: Carton with pallet

Brand Name: SPACE

Power: 5.0KW

Material: stainless steel

Gross weight: 285KG

Dimension Packing(mm): 860*700*1690

1.Capacity:78L/hour
2.Freezing cylinder:2*3.2 Liter
3.Mix hopper:2*15 Liter
separate hopper refrigeration(Pre-cooling)maintains mix below 4.4℃

High quality threeflavors soft ice cream machine

Product Offering

offer all popular soft serve variations from low or non-fat ice cream to custards,yogurt and sorbet.

Specification

1.Voltage:380-450V/50Hz

2.Power:5.0KW

3.Twin flavour+one mix

4.Air pump freezer---Gear pumps ensure a high overrun ice cream

5. Stainless Steel Panels

6.LED automatic control

7.Independent refrigeration and control system for each flavour

8.Dual system
9.Air cooling

Freezing cylinder

Two,3.2 Liter

Mix hopper

Two,15 Liter

separate hopper refrigeration(Pre-cooling)maintains mix below 4.4℃.

Microprocessor controls

microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light

The mix low light turns"on" to alert operator to add mix,preventing cylinder over freezing.

Standby

Maintains product temperature in the mix hoppers and freezing cylinders below 4.4℃during long no-use periods.

Counter

Records number of dispenses per day and total number of dispenses.

Agitator in the hopper

Mixture has better liquidity, the temperature of the Mix to be more uniform.

Output

78 Liter/Hour(At 4℃liquid &24℃Ambient)

Electrical requirements

One dedicated electrical connection is required.

Make voltage steady when machine is ON.

Main motor

2*1.25HP

Refrigeration system

Two compressors:2*6848 BTU/hr. R404a

separate hopper refrigeration(pre-cooling):one compressor:400BTU/hr.R134a

(BTU may vary depending on compressor used.)

Air cooled

Minimum clearance of 152 mm on both sides is to achieve optimum performance.

Refer to the local situation to regulate the parameters,on basic of the data label.Specificaitons of the improvements are subjuct to change without notice.

Options

Local specific plugs of power supply wire

Cup dispenser

Power supply 220V/60Hz

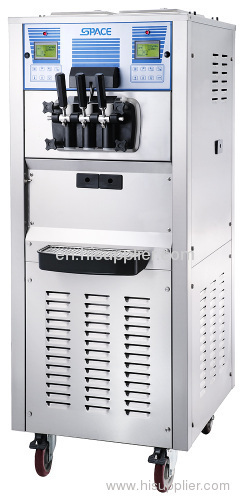

Picture of High quality three flavors soft ice cream machine

Picture of flexible blade beater---Higher capacity,higher overrun

Picture of mix hopper
